Prismatic Type
|
Battery Molds
|
Typical Model
|
Nominal Voltage
(V) |
Nominal Capacity
(Ah) |
Internal Impedance
(mΩ) |
Thickness
(mm) |
Width
(mm) |
Height
(mm) |
Weight
(g) |
|
XX55156
|
8055156
|
3.2V
|
3.5Ah
|
≤1.5
|
8.0
|
55.5
|
156.5
|
125.0
|
|
XX55156
|
9955156
|
3.2V
|
4.5Ah
|
≤1.4
|
9.9
|
55.5
|
156.5
|
156.0
|
|
XX102165
|
09102165
|
3.2V
|
10Ah
|
≤4.5
|
9.0
|
102.0
|
165.0
|
260.0
|
|
XX108250
|
92108250
|
3.2V
|
20Ah
|
≤3.0
|
9.2
|
108.0
|
250.0
|
460.0
|
|
XX200235
|
85200235
|
3.2V
|
22Ah
|
≤1.0
|
8.5
|
200.0
|
235.0
|
620.0
|
|
XX185190
|
09185190
|
3.2V
|
25Ah
|
≤1.0
|
9.0
|
185.0
|
190.0
|
590.0
|
|
XX170250
|
95170250
|
3.2V
|
32Ah
|
≤1.0
|
9.5
|
170.0
|
250.0
|
740.0
|
|
XX135180
|
27135180
|
3.2V
|
50Ah
|
≤1.0
|
27.0
|
135.0
|
180.0
|
1300.0
|
|

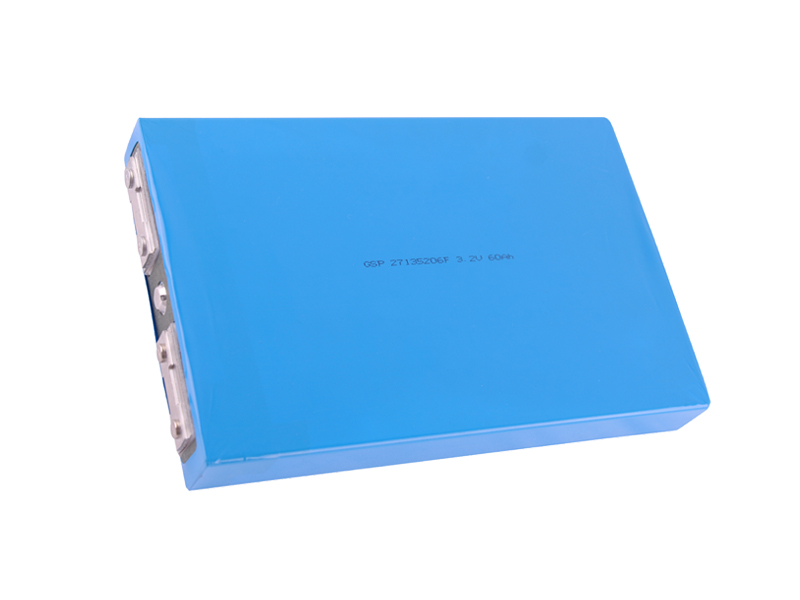

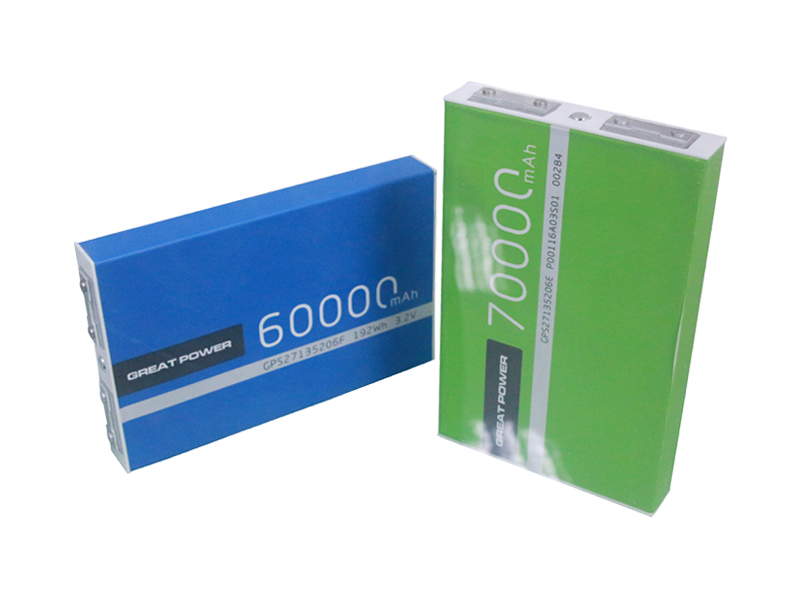

XX135206
|
27135206F
|
3.2V
|
60Ah
|
≤0.7
|
27.0
|
135.0
|
206.0
|
1530.0
|
|
XX135206
|
27135206H
|
3.2V
|
80Ah
|
≤0.7
|
27.0
|
135.0
|
206.0
|
1600.0
|
|
XX135250
|
27135250F
|
3.2V
|
75Ah
|
≤0.7
|
27.0
|
135.0
|
250.0
|
1840.0
|
|
XX135250
|
27135250H
|
3.2V
|
100Ah
|
≤0.7
|
27.0
|
135.0
|
250.0
|
2000.0
|
|
XX135214
|
34135214
|
3.2V
|
113Ah
|
≤0.7
|
34.0
|
135.0
|
214.0
|
2140.0
|
-
